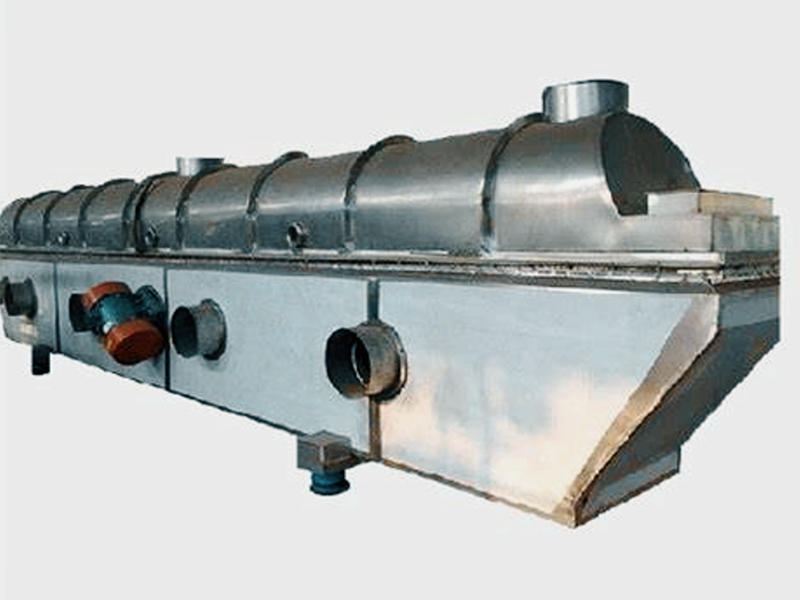

Vibrating Fluidized Bed Drying Equipment

This equipment is an integrated drying device adopting vibrating fluidized bed technology, mainly used for dehydration of powdery and granular materials. It is suitable for chemical, pharmaceutical, food, environmental protection and other industries, meeting the large-scale drying needs of various materials. Working Principle After pretreatment, wet materials are fed into the drying chamber. The vibrating device makes the materials in a fluidized suspended state, and the hot air is fully contacted with the materials to realize efficient heat transfer and moisture evaporation. The dried materials are screened and collected, and the tail gas is discharged up to standard after dust removal. The whole process is fully automatically controlled by PLC. Core Features 1. Uniform Drying: Vibrating fluidized state, uniform temperature and consistent finished product moisture, no local overheating; 2. Controllable Quality: Low-temperature gentle drying, retaining material activity, finished products without caking; 3. Customizable Adaptability: Processing capacity, parameters and materials can be customized, suitable for materials with 1.0%-30% moisture content, and the conventional processing capacity ranges from 100-1000kg/h; 4. Energy Saving: High thermal efficiency, recyclable hot air, lower energy consumption than traditional equipment; 5. Full-automatic Operation: PLC intelligent control, one-key start-stop, remote monitoring, easy maintenance; 6. Environmental Compliance: High-efficiency dust removal, up-to-standard emission, compact structure. Applicable Industries Chemical, pharmaceutical, food, environmental protection and other industries, including powder, waste salt drying, etc. It can dry materials after ammonia stripping, supporting non-standard customization and turnkey projects; the conventional processing scale is 100-1000kg/h. If a larger processing capacity is needed, it is recommended to choose a fluidized bed dryer to ensure the stability of equipment operation and avoid vibration component wear and equipment damage caused by excessive processing capacity.
