Dust Removal Equipment Supporting Drying Process

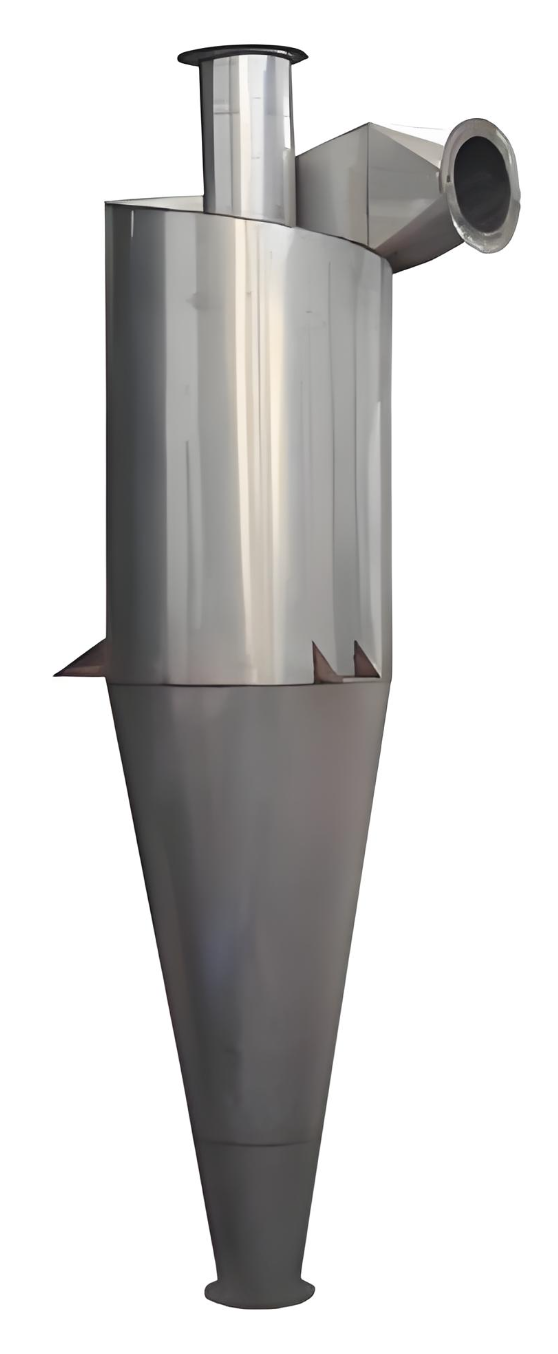

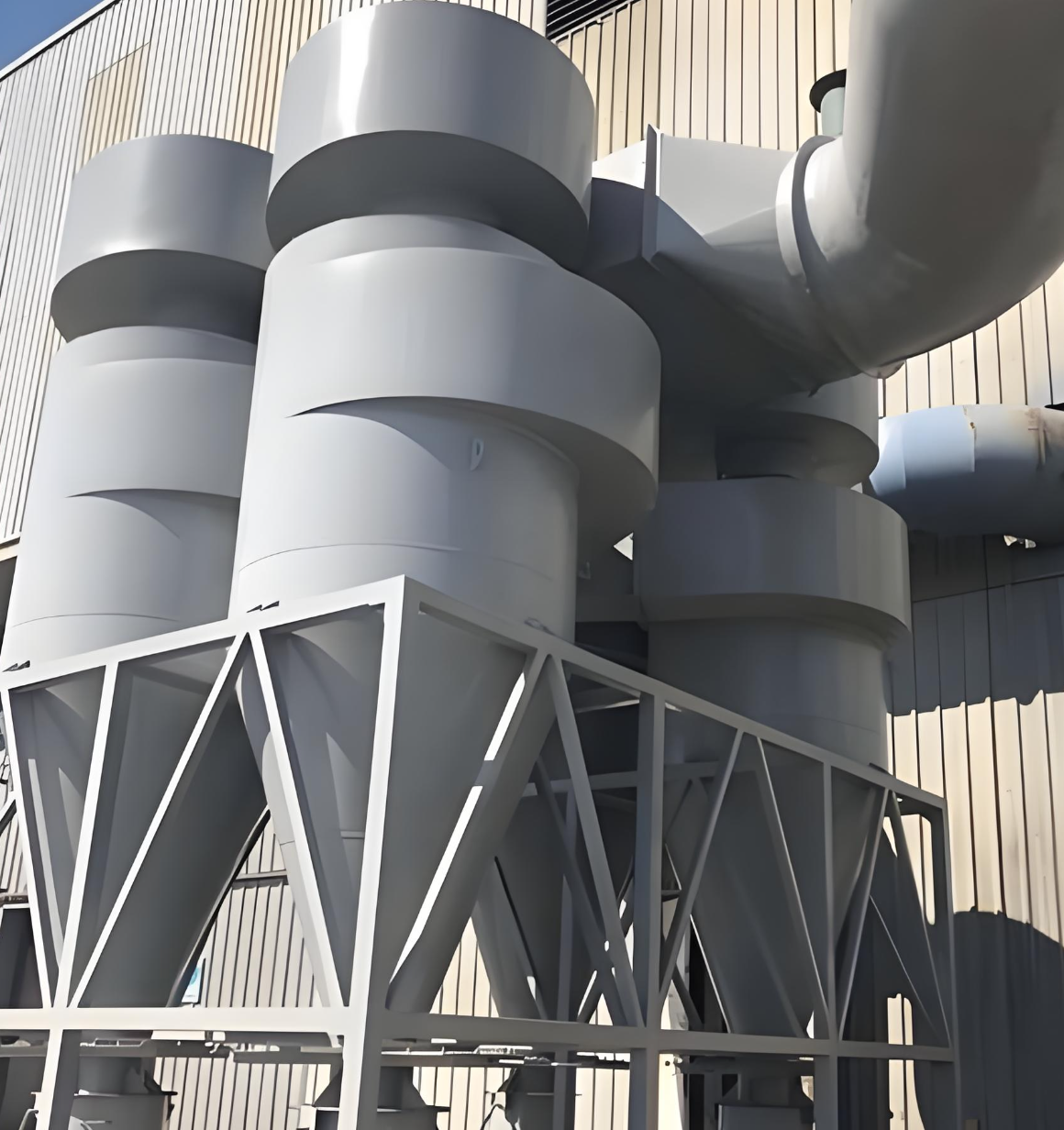

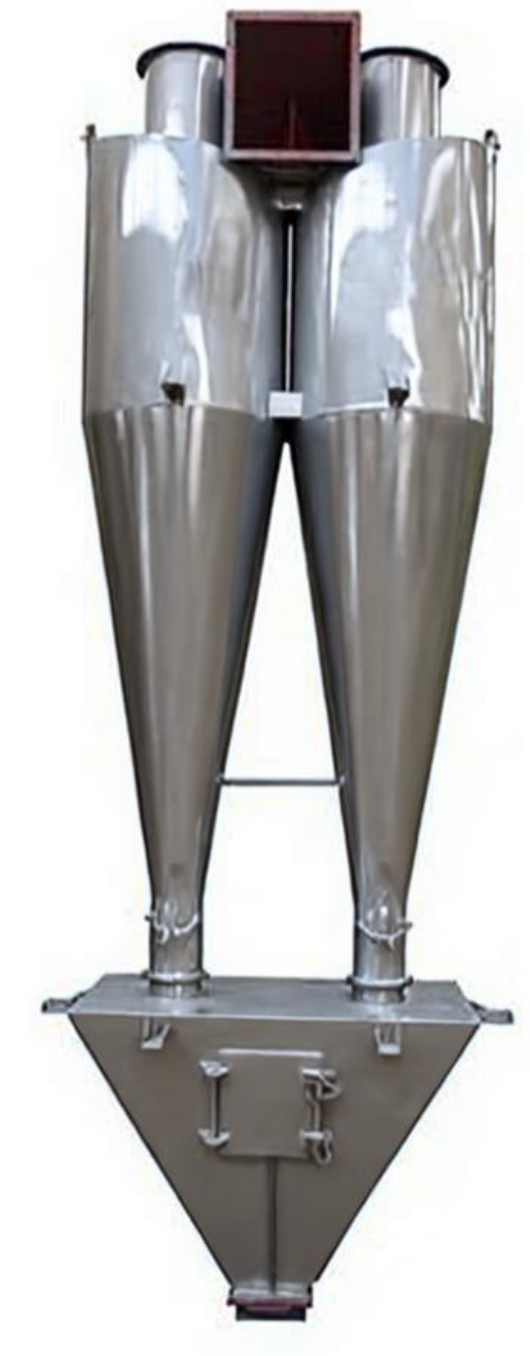

Drying and Dust Removal Equipment is a dust purification equipment specially designed for matching drying processes. Its core function is to capture solid particles generated during the drying process and realize the purification and emission of waste gas. The equipment covers two major types: dry method and wet method, which can be flexibly selected according to different working conditions. The dust removal effect can not only meet China's comprehensive emission standard of 10mg/Nm³ for solid particles, but also reach the clean air standard of 2mg/Nm³ or even 1mg/Nm³ according to international special cleanliness requirements, adapting to the dust control needs of various drying scenarios. 1.Main Equipment Types and Introduction - Cyclone Dust Collector: A dry dust removal equipment. It uses the principle of centrifugal force to make dust-containing gas rotate at high speed in the cyclone cylinder, separating and collecting dust particles. It has simple structure, stable operation and low energy consumption. It is suitable for capturing dust with larger particle size and is often used as a pretreatment equipment or auxiliary dust removal equipment. - Bag Type Dust Collector: A dry dust removal equipment. It mainly uses filter bags to filter dust-containing gas. Dust particles are intercepted by the filter bags, and the purified gas is discharged. It has high dust removal efficiency, is suitable for various particle sizes of dust, especially fine particles, and has flexible operation. It can adjust filtering parameters according to working conditions and has a wide application range. - Sintered Plate Dust Collector: A dry dust removal equipment. It uses a sintered plate as the filtering element, which has the characteristics of wear resistance, corrosion resistance and anti-condensation. It has high filtering precision, is not easy to block, and is convenient to maintain. It is suitable for dust control scenarios with high humidity, high viscosity dust and corrosive gas. - Precision Filter: A dry high-precision dust removal equipment. It adopts high-precision filtering materials, which can effectively capture fine dust particles. The dust removal precision can reach 1mg/Nm³. It is suitable for scenarios with extremely high requirements on exhaust gas cleanliness, such as precision drying and clean production. - Water Curtain Dust Collector: A wet dust removal equipment. It intercepts dust-containing gas by forming a water curtain. Dust particles settle after contacting with water to achieve dust removal and purification. It has simple structure and low cost, and has dual effects of cooling and dust reduction. It is suitable for drying scenarios with high dust concentration and high temperature. 2.Core Features - Flexible Selection: It covers various types of dry and wet methods, and can flexibly select suitable equipment according to dust characteristics, working conditions and cleanliness standards. - High Dust Removal Efficiency: Under normal working conditions, it can meet the national comprehensive emission standard of 10mg/Nm³, and can reach the clean air requirements of 2mg/Nm³ and 1mg/Nm³ for special requirements. - Independent Operation: It does not need to be combined with the drum scraper dryer, and can be used alone for dust control in various drying processes with strong adaptability. - Stable Operation: All types of equipment have mature structures, convenient maintenance, can operate stably for a long time, and adapt to continuous production needs. 3. Applicable Industries It is widely used in various industries that need supporting drying processes, such as chemical industry, food industry, pharmaceutical industry, environmental protection industry and building materials industry. It can be used for dust control of various drying equipment such as drum drying, spray drying and airflow drying, effectively solving the problem of dust pollution during the drying process, ensuring the up-to-standard emission of waste gas, and meeting the enterprise's environmental compliance requirements.
