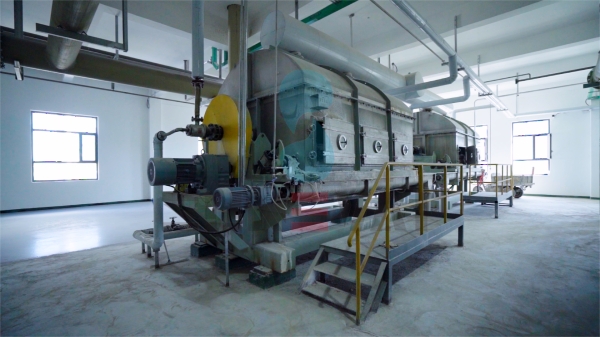

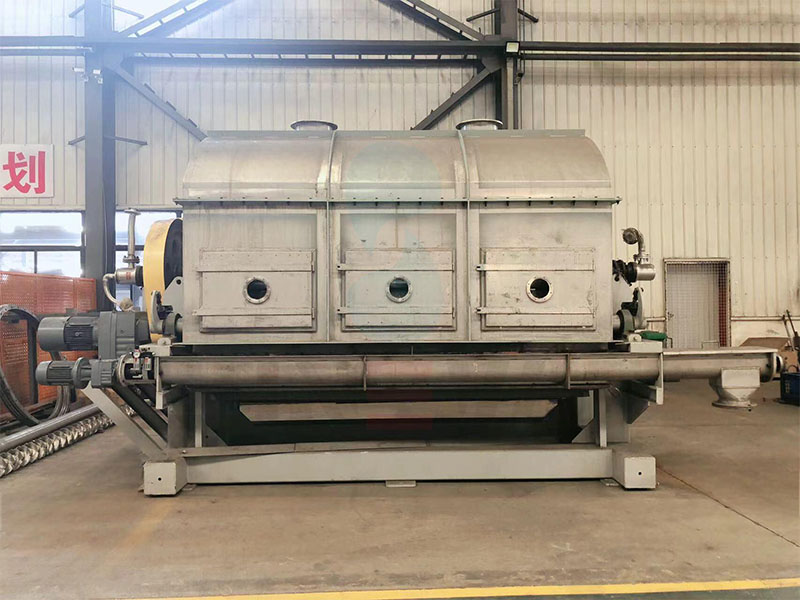

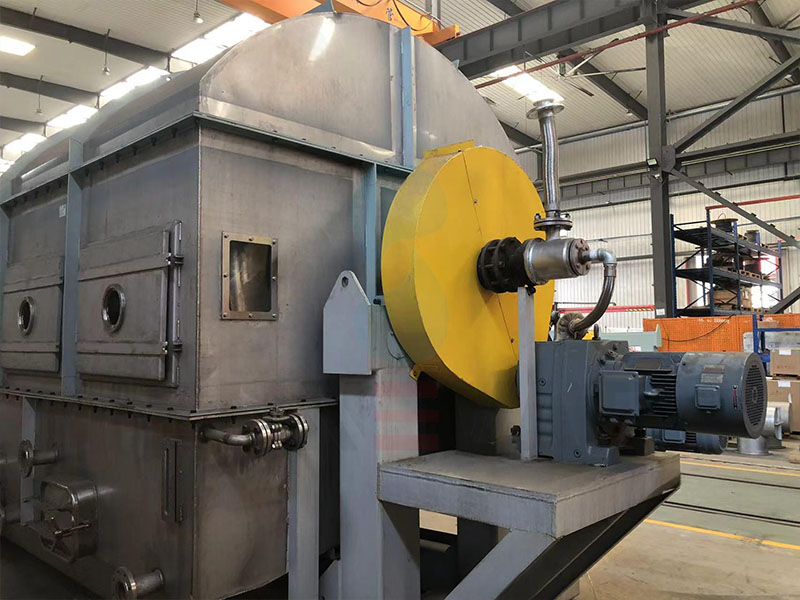

Drum Scraper Dryer

Drum Scraper Dryer is a continuous conductive drying equipment, mainly composed of a drum, film distribution device, scraping device, transmission device and heating medium inlet, outlet and drainage device. It takes heat conduction as the core to realize continuous drying of liquid materials. The material contact parts can be made of 316L/2205/Titanium, etc., adapting to large-scale drying needs of various materials, with continuous and efficient operation, stability and practicability, widely used in many industries. 2. Working Principle Heating medium (steam or thermal oil) is fed into the drum to provide a stable heat source. The drum rotates at a constant speed, and the feed liquid is evenly attached to the outer wall of the drum through submerged or spray film distribution device to form a film. The film is quickly dried by heat conducted through the drum wall, and the finished product is scraped and collected by the scraper system. The film distribution device is equipped with an overflow pipe to prevent feed liquid overflow, and the sewage outlet at the bottom of the feed liquid tank facilitates cleaning and maintenance. 3. Core Features - High Drum Precision and Strong Durability: The drum adopts rolled welding + integral thermal stress relief treatment, the surface is processed by multiple processes and chrome-plated hardening (hardness HRC65), with mirror roughness and drum surface runout ≤0.05mm; the internal groove diversion design improves heat transfer efficiency, the balance level is above G4, equipped with special equipment pressure vessel certificate, and the material contact parts can be made of 316L/2205/Titanium, etc., with long service life. - Reliable Scraper System and Uniform Scraping: Adopts pneumatic pressing device with adjustable pressing force; the scraper material matches the drum hardness, integral custom design, no scraping dead angle and no damage, the fixture can be flexibly disassembled and assembled, with excellent sealing and rigidity. - Reasonable Film Distribution System and Convenient Operation: Supports submerged and spray film distribution, the feed liquid tank is equipped with an overflow pipe and a sewage outlet, with uniform film distribution and convenient cleaning and maintenance. - Stable Operation and Strong Adaptability: The transmission system is stable, can realize continuous production, with stable running-in performance, adapting to materials of different viscosities and characteristics, simple operation and low maintenance cost. 4. Applicable Industries Widely used in chemical, food, environmental protection, pharmaceutical and other industries, suitable for continuous large-scale drying of various liquid materials, can handle high-viscosity, heat-sensitive and easy-to-crystallize materials, helping enterprises improve efficiency and reduce operating costs.
